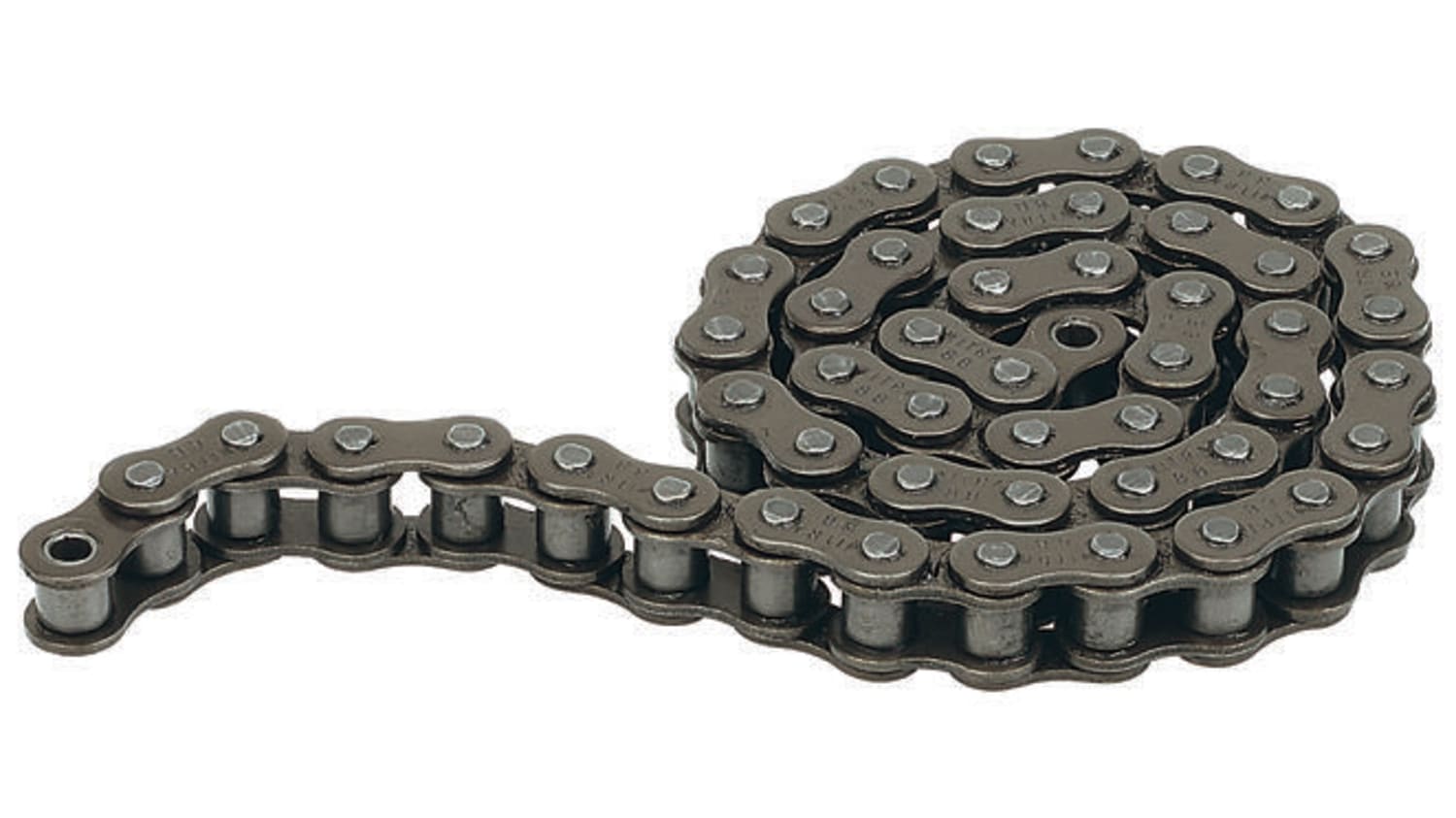

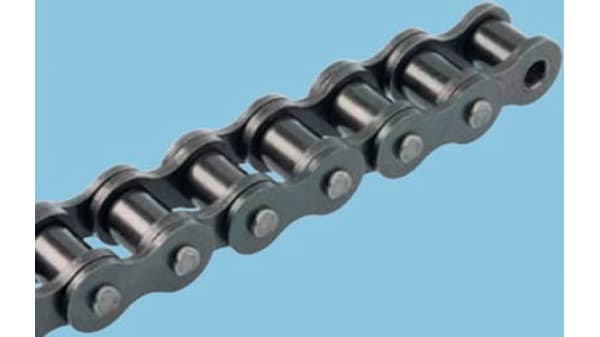

08B-1 1/2" pitch simplex roller chain.
Available in a 10ft Boxed roll only
This Chain is suitable for farm machinery, industrial transmission drives, material handling equipment, and other applications.
Specifications
| Simplex, Standard | |
| Pitch | 12.7 mm |
| Roller Diameter | 8.51 mm |
| Roller Width | 7.75 mm |
| Tensile Strength | 19.4 kN |
| Hole Diameter | 4.45 mm |
| Maximum Load | 0.69 kg/m |
| ANSI Chain Size | 08B-1 |
