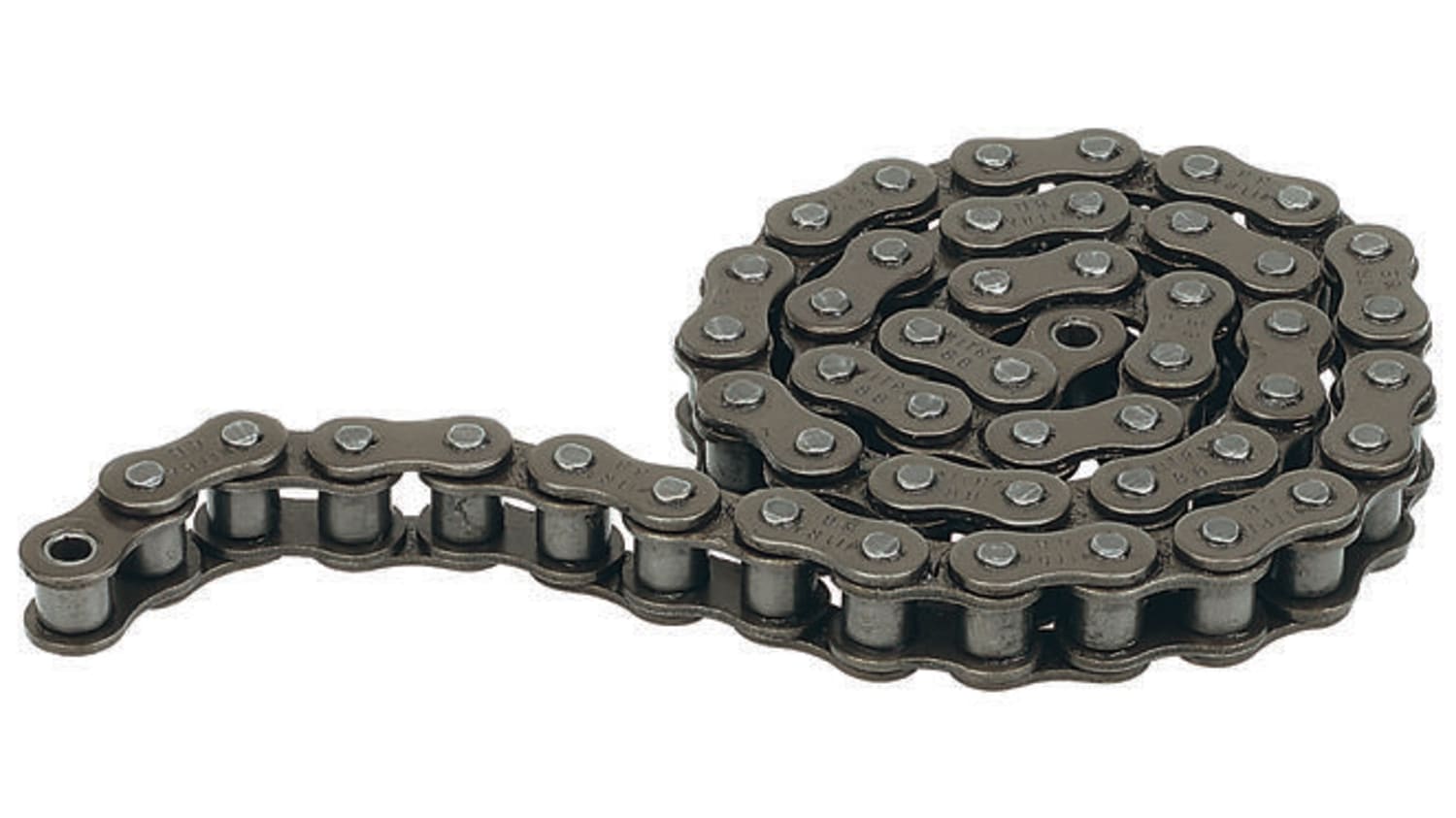

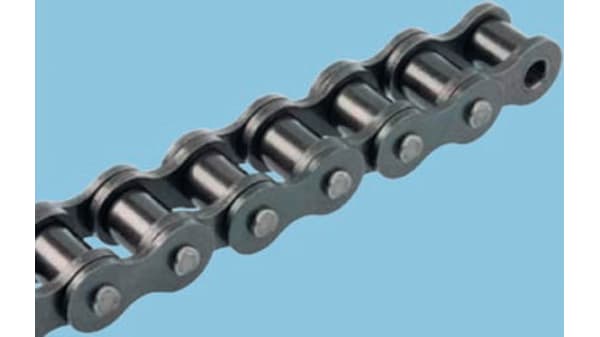

06B-1 3/8" pitch simplex roller chain.
Available in a 10ft Boxed roll only
This Chain is suitable for farm machinery, industrial transmission drives, material handling equipment, and other applications.
Specifications
| Standard Simplex | |
| Pitch Length | 9.525 mm |
| Roller Diameter | 6.35 mm |
| Roller Width | 5.72 mm |
| Tensile Strength | 10.4 kN |
| Hole Diameter | 3.28 mm |
| Maximum Load | 0.41 kg/m |
| ANSI Chain Size | 06B-1 |
